i2R Top Mount Vacuum Clamp Table 610 x 915mm - Complete Kit

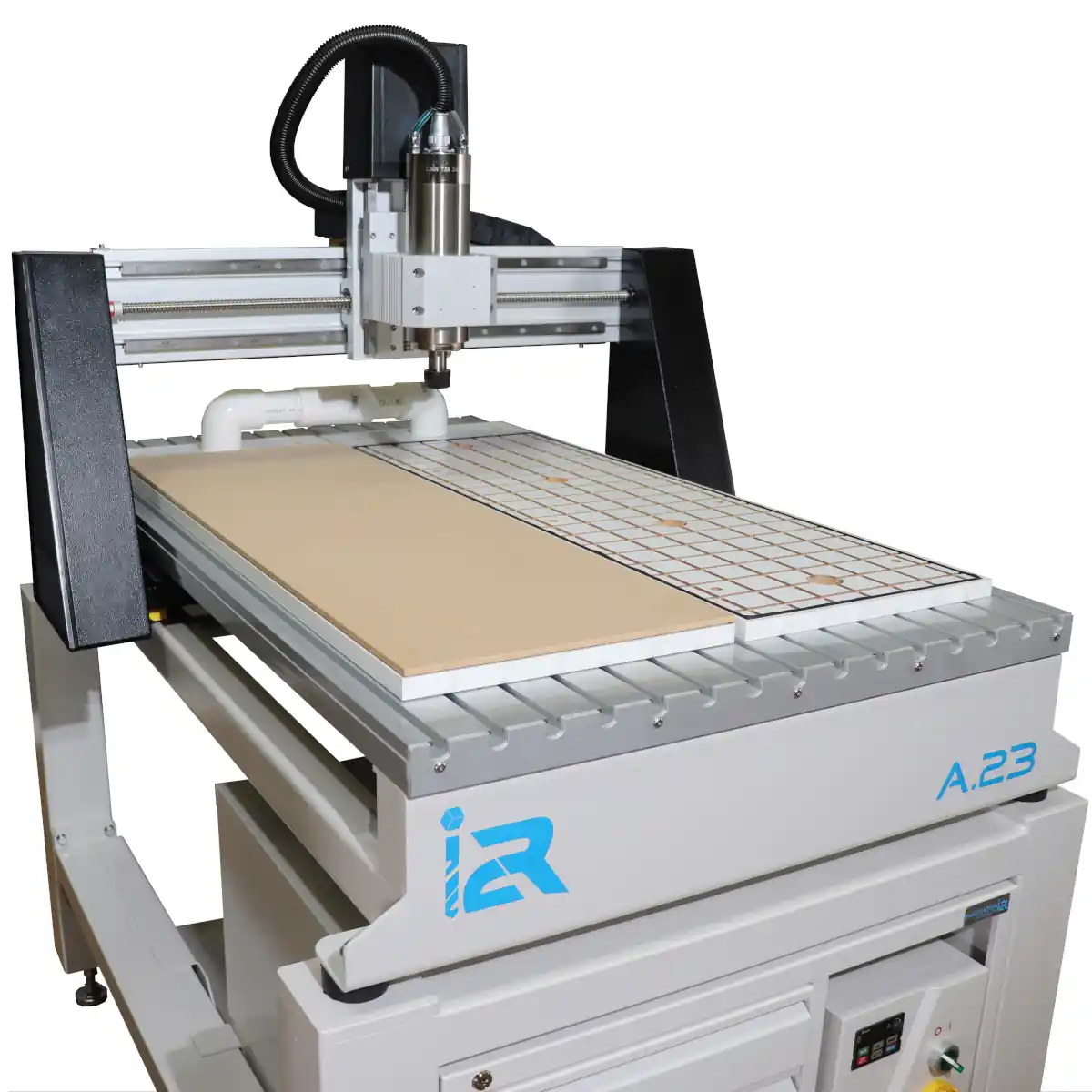

Custom made in Australia, the i2R CNC Vacuum Table is designed to sit directly on the Aluminium T-slot Table of your i2R CNC and is secured using the included T-slot bolts. Measuring 610 x 915 x 32mm, it is particularly suited to the i2R-A23 and i2R-B23 machines.

This vacuum table provides a safe, stable, and effective solution for holding down flat sheet work on your CNC. Unlike traditional clamping methods, there’s no risk of clamps or workpieces interfering with the cutting path, reducing the chance of damage to bits, spindles, or clamps. Perfect for small-format CNCs, it can be used with an MDF spoilboard to protect the table while still allowing a strong vacuum hold. Please note: the vacuum table is designed for larger sheets and is not suitable for holding individual small parts unless their surface area remains sufficient.

Kit Includes:

• Fully channel-machined vacuum surface table
• 4mm MDF spoilboard

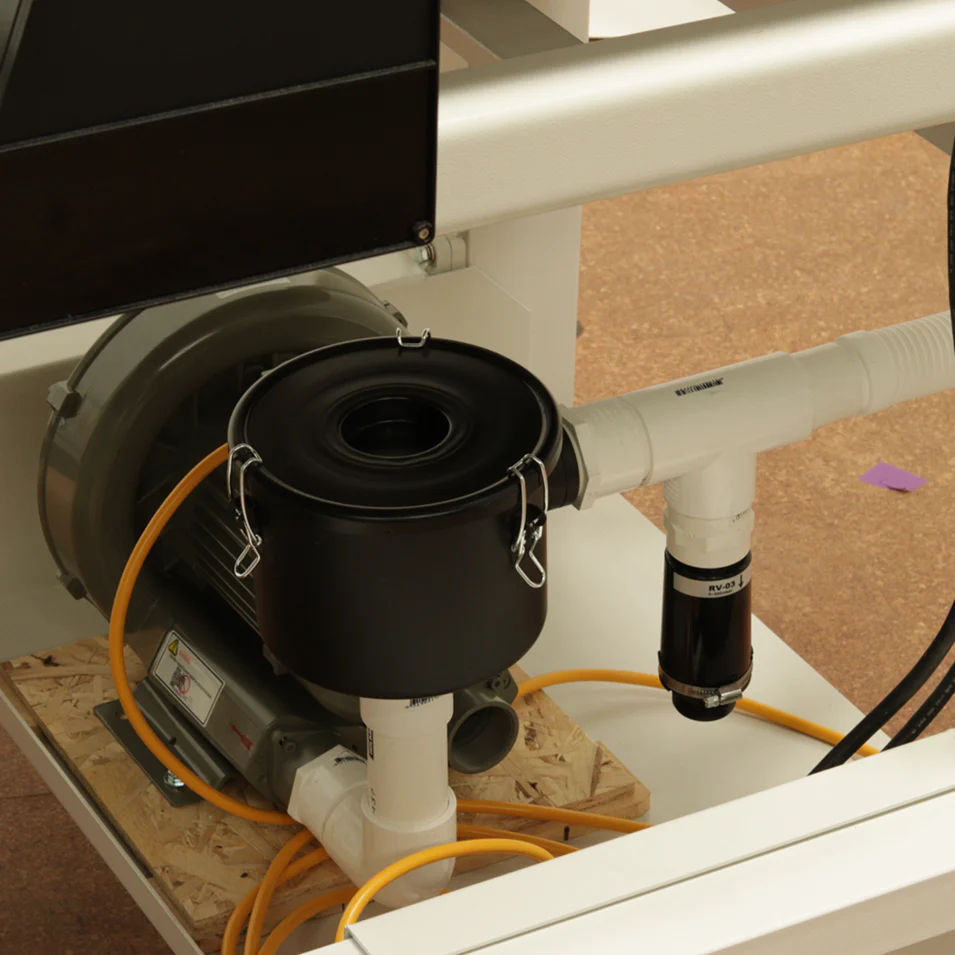

• 1HP vacuum unit
• Vacuum pod filter
• Safety relief valve
• All required hoses and fittings

Pump Specifications:

• 0.75kW (1HP) single-stage side channel vacuum blower
• 230V 10A single-phase operation
• Made in Taiwan
• CE and UL certified motor, ISO 9001

Key Features:

• Provides strong hold-down force for flat sheet work
• Eliminates interference from clamps or workpieces
• Supports MDF spoilboard for added protection
• Maintains full Z-axis travel and bridge clearance
• 32mm thick table with 4mm MDF spoilboard
• Custom-made in Australia for small-format CNC machines
